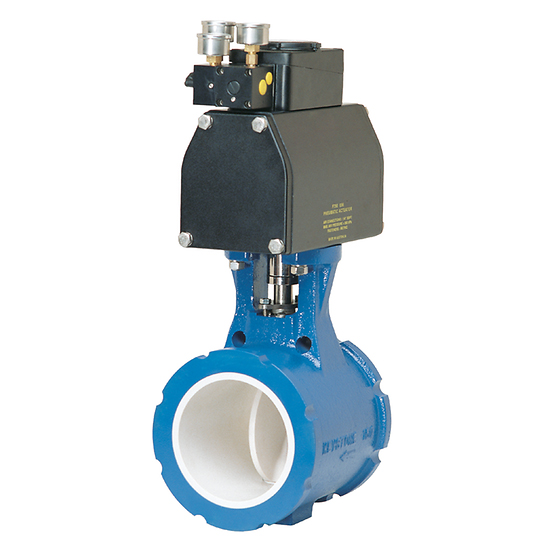

Slurry valve

Features:

Heavy robust construction.

Full repairability with replaceable internals for significantly extending valve life.

Extended body for protection of down stream piping.

Chrome Iron internals on the Series 2 coated with tungsten carbide.

Series 2 features tungsten carbide disc end spacers.

Swing through disc for minimal leakage at elevated temperatures.

Wing-style disc for optimum flow and wear resistance.

Venturi liner for improved flow control and thicker liner for wear resistance.

Improved mechanical seal to prevent the ingress of media to the bearing journals.

KTFE stem seals for ultimate resistance against caustic and acid applications.

Superior multiple stem seals.

Standardized mounting and drive adaptor connection allowing direct mounting of actuators and also allows for in-line actuator removal.

Specifications:

Certifications PED

End Connection Wafer

Application Metals Processing, Hard Surface, Dirty Service, Erosive, Control

Body Design Long Pattern

Material Carbon Steel

Pressure Class ASME

Process Connection Type CL150RF, CL300RF, CL600RF

Seat/Seal Type Metal

Standards ASME B16.34

Valve Size NPS 10 / DN 250, NPS 12 / DN 300, NPS 14 / DN 350, NPS 16 / DN 400, NPS 18 / DN 450, NPS 2 / DN 50, NPS 1-1/2 / DN 40, NPS 2-1/2 / DN 65, NPS 20 / DN 500, NPS 8 / DN 200, NPS 6 / DN 150, NPS 3 / DN 80, NPS 24 / DN 600, NPS 4 / DN 100

Valve Size Standard DN

Valve Type Butterfly

Media Solid

Stem Adjustable packing
