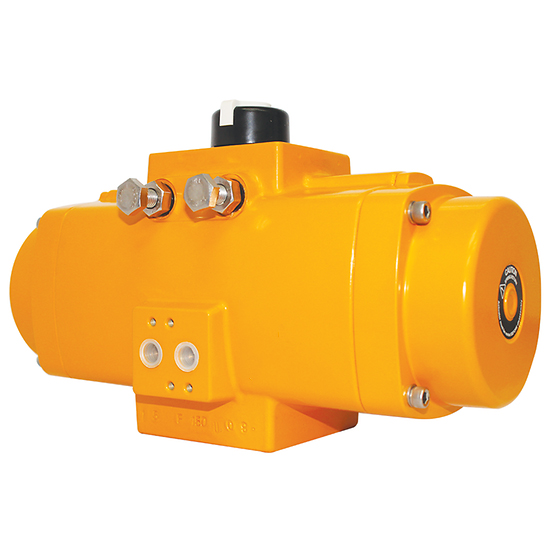

Rack and pinion pneumatic valve actuator

Features:

With single and double acting Actuators in 13 sizes, ranging from 12 Nm to 4100 Nm (106 to 36,474 lbf.in).

Fit and Forget robust, corrosion resistance design.

Easy to install actuator which functions faithfully giving many years of dependable performance.

The hard anodized high grade aluminum (7075 T6) pinion, provides the best combination of corrosion resistance, high strength and a lightweight construction as well as providing protection against galvanic corrosion.

Modular construction allows easy spring or action changes.

Dual valve flange drilling patterns and interchangeable drive inserts allows for direct mounting capability and reduces the need for valve mounting kits.

Compliance to NAMUR interface standard allows the actuator to be packaged with a wide range of accessories.

Dual Stroke Adjustment allows easy setting of the valve stroke which prevents premature valve failures.

Construction with standard components for delivery in a variety of frequently used configurations.

Specifications:

Power Source Pneumatic

Product Type Pneumatic Rack and Pinion Actuator

Actuation Quarter-turn

Certifications ROHS3, REACH, ATEX, PED and Machinery Directives, SIL3, IP66/67

Control Type On/Off, Positioning, Modulating, ESD

Valve Type Ball, butterfly, plug and any other quarter turn application

Operating Temperature Standard -20°C to +80°C (-4°F to +176°F). Optional high and low temperature options

Torque 13 sizes: 12 Nm to 4100 Nm (106 lbf.in to 36,474 lbf.in)

Operating Pressure up to 8.3 bar / 120 psi
