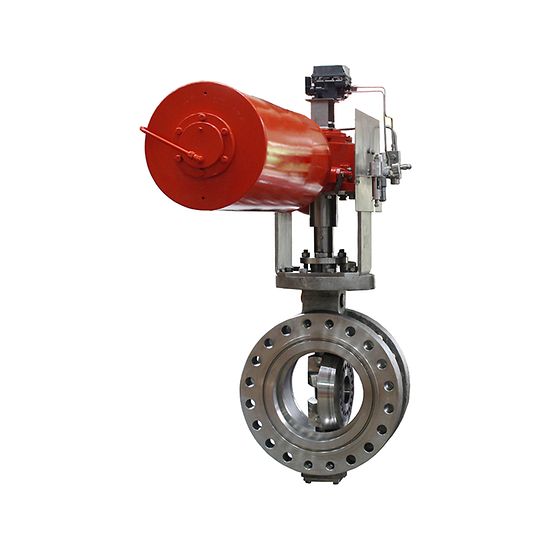

Triple offset valve

Specifications:

Valve Size NPS 3, NPS 4, NPS 6, NPS 8, NPS 10, NPS 12, NPS 14, NPS 16, NPS 18, NPS 20, NPS 24, NPS 30, NPS 36, NPS 40, NPS 42, NPS 44, NPS 48, NPS 52, NPS 56

Pressure Class 150#, 300#, 600#

Body Styles Double Flanged (Short Pattern), Double Flanged (Long Pattern), Lug / Wafer

Materials Carbon Steel, Stainless Steel, Low Temperature Carbon Steel, Duplex, Super Duplex, Inconel

Design and Manufacturing Standards API 609 (Category B), ASME B16.34, BS EN 593

Face-to-Face / End-to-End Standards API 609, ASME B16.10, ISO 5752 Series 13, ISO 5752 Series 14

End Connection Standards ASME B 16.5 for flanged end up to 24 / ASME B16.47 for larger size Series A and B

Pressure Test Standards API 598, ANSI / FCI 70-2

Fire Safety Test Standards API 607, API 6FA, ISO 10497-5

Product Compliance ISO 9001, API 609, PED 2014/68/EU, EAC (Russia),ATEX and OSHAS 18001

Safety Reliability SIL3 Capable

Fugitive Emissions ISO 15848

NACE MR 01-75

Valve operator options Bare stem, Gear, Hand lever, Pneumatic actuator, Hydraulic actuator, Gas actuator, Gas-over-oil actuator, Motor-operated actuator, Hydraulic/electro actuator, hydraulic-operated actuator

Shutoff Class API 598 (Zero Leakage), Class VI (FCI 70-2)

View Detail
